Brand | Ubiquiti |
WiFi standard | WiFi 5 |
Max data rate | 60 GHz: 6 Gbps, 5 GHz: 866.6 Mbps |
Coverage area | 500 m |
MIMO | 5 GHz 2 × 2 DL MU-MIMO |
Antenna gain | 60 GHz: 21 dBi, 5 GHz: 14 dBi, 2.4 GHz (BLE): 2 dBi |
Max TX power | 60 GHz: 16 dBm, 5 GHz: 23 dBm |
Wireless security | WPA2 AES |

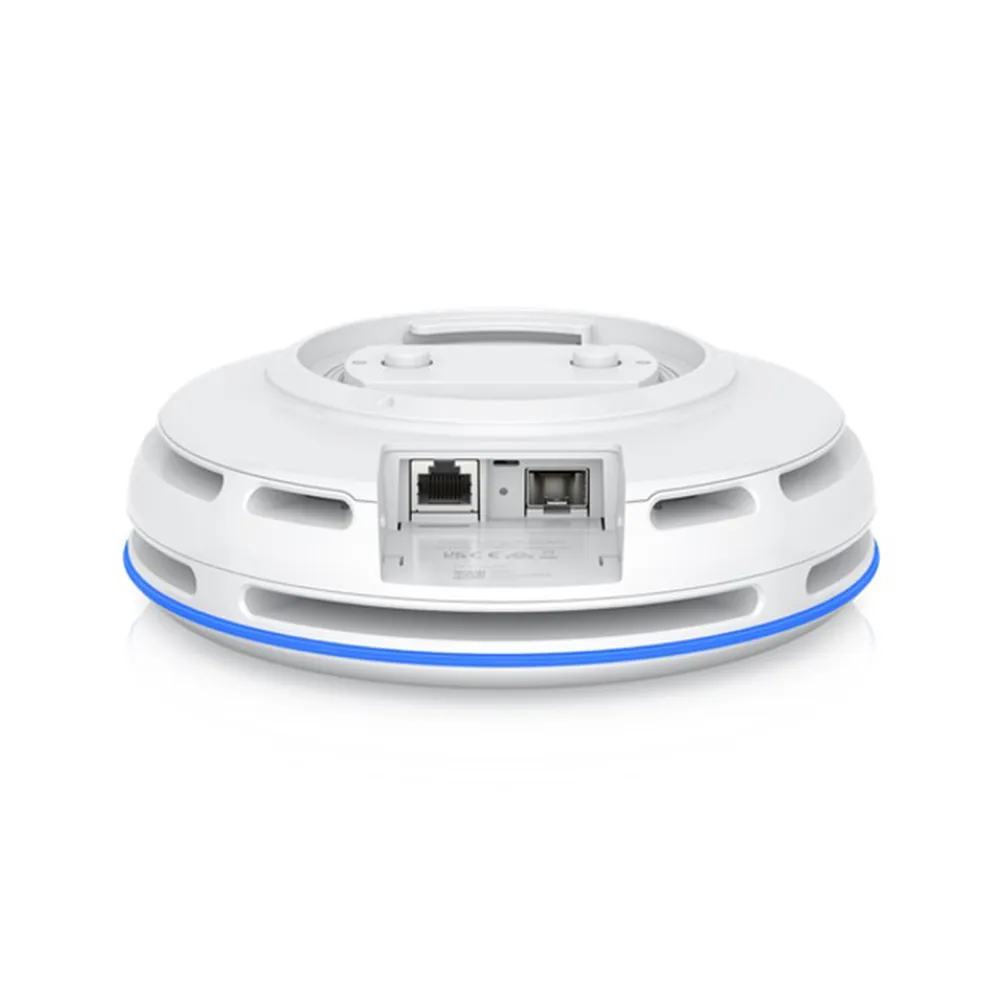

Networking interface | 1 × GbE RJ45 port, 1 × 10G SFP+ port |
Power method | PoE++ and Passive PoE |
Max power consumption | 29 W |
Supported voltage | 48 V DC ± 10% |
Mounting options | Wall, pole (1–2.5″ diameter) |
Enclosure material | Aluminium alloy, UV-resistant polycarbonate |
Mount material | Stainless steel |
Operating modes | Point-to-Point (PtP) |
Operating frequency | 60 GHz: 57–66 GHz, 5 GHz: 5150–5850 MHz (regional variations) |
Bluetooth frequency | 2,400–2,483.5 MHz |
Ambient operating temperature | -40 to 55 °C |
Ambient operating humidity | 5–95% noncondensing |
Dimensions | Ø191.8 × 59 mm |
Weight | Device: 1.7 kg, With mount: 2.9 kg |
Ubiquiti Building Bridge XG Outdoor Wireless Bridge
$2,809.00 incl. GST
The Ubiquiti Building Bridge XG outdoor wireless bridge delivers high-speed connectivity with a maximum data rate of 6 Gbps. Designed for professional-grade deployments, the Building Bridge XG provides secure and reliable point-to-point communication over distances up to 500 m. Its robust IPX6 weatherproof enclosure ensures consistent performance in harsh outdoor conditions, making it an ideal solution for expanding or linking enterprise networks.
This advanced wireless bridge features 60 GHz and 5 GHz radios with MU-MIMO technology, delivering fast, interference-free performance. The integrated gigabit and 10G SFP+ ports provide flexible connectivity options, while PoE++ support simplifies installation. With precision engineering, powerful antenna gain, and rugged aluminium construction, the Building Bridge XG maximises throughput and ensures long-term reliability in challenging environments.
Key features:
- High-speed 6 Gbps point-to-point wireless link
- Dual-band 60 GHz and 5 GHz backup radio for seamless connectivity
- Robust IPX6-rated weatherproof enclosure for outdoor use
- MU-MIMO technology enhances capacity and efficiency
- 500 m coverage area with strong antenna gain
- Includes PoE++ adapter for simplified deployment

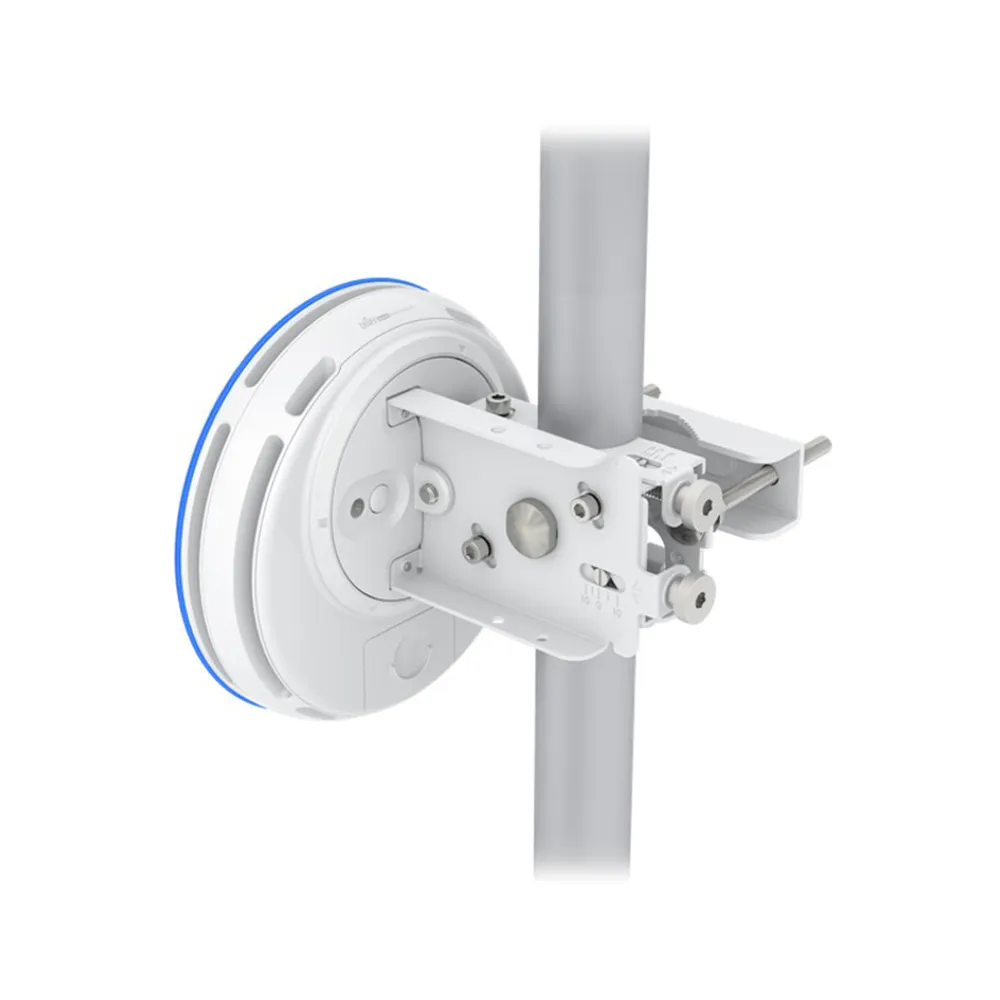

- Flexible mounting for wall or pole installation
- Secure WPA2 AES wireless encryption
- Lightweight design with rugged aluminium and UV-resistant polycarbonate build
