| Dimensions | 117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67”) |
| Enclosure material | Polycarbonate |
| Management interface | Ethernet, Bluetooth |
| Networking interface | LAN: (1) 2.5 GbE RJ45 WAN: (1) 10 GbE RJ45 |
| Power method | USB Type-C (5V DC/5A) |
| Max. power consumption | 22W |
| Max. TX power – 2.4 GHz | 23 dBm |
| Max. TX power – 5 GHz | 26 dBm |
| MIMO – 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO – 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Throughput rate – 5 GHz | 4.3 Gbps |
| WiFi standards | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| VLAN | 802.1Q |
| Advanced QoS | Yes |
| Guest traffic isolation | Supported |
| Weight | 422 g (14.9 oz) |

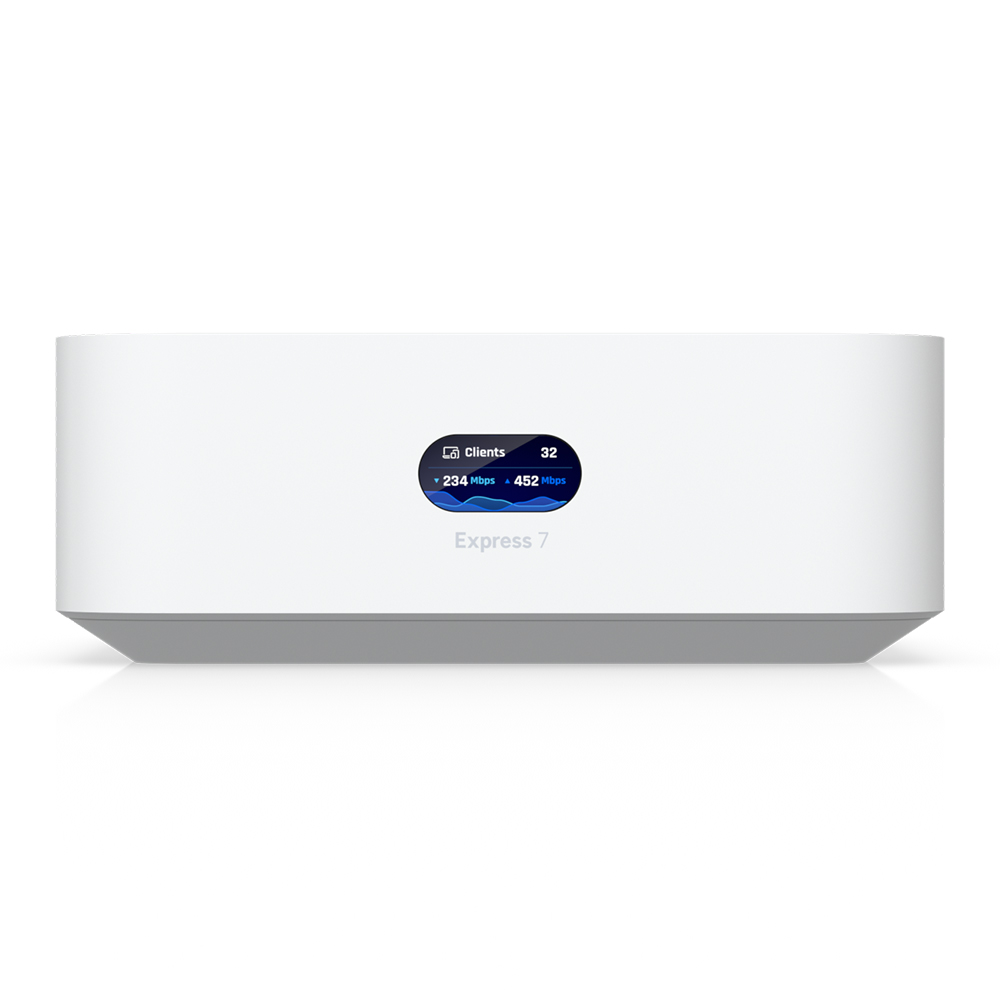

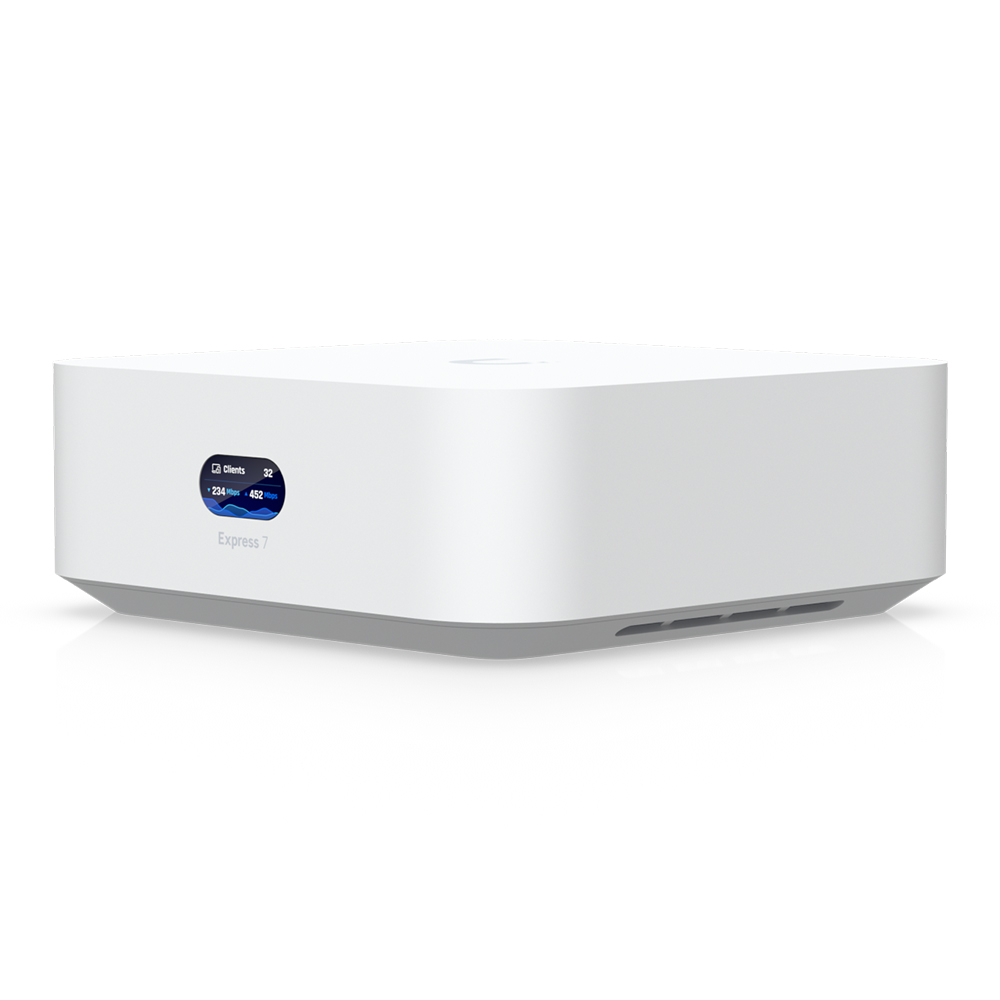

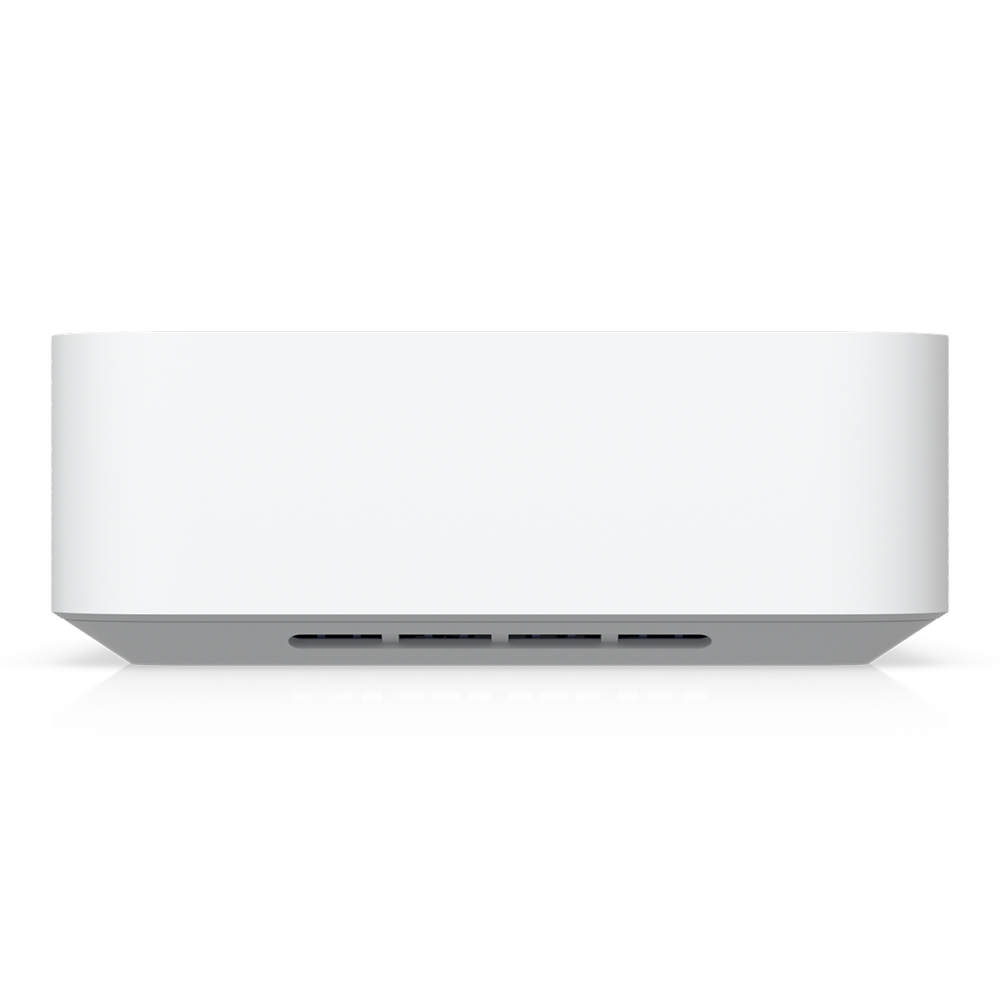

UniFi Express 7 cloud gateway
$489.00 incl. GST
The UniFi Express UX7 is a compact, high-performance gateway and WiFi access point designed for modern business and home networks. Featuring support for the latest WiFi 7 standard, it delivers blazing-fast wireless throughput—up to 5.7 Gbps on 6 GHz, 4.3 Gbps on 5 GHz, and 688 Mbps on 2.4 GHz—making it ideal for high-density environments.
With 10 GbE and 2.5 GbE ports, robust security features—including Layer 7 firewall, DPI, and over 20,000 IPS/IDS signatures—and license-free SD-WAN and VPN options, the UX7 provides enterprise-level performance in a sleek, desktop-sized enclosure.
Features
- Supports 300+ users and 30+ UniFi devices
- Covers up to 160 m² with WiFi 7 MU-MIMO technology
- Integrated VPN options including WireGuard, IPsec, OpenVPN, and Site Magic
- Quad-core ARM CPU, 3 GB RAM, USB-C power with adapter included
- Fully managed via the UniFi Network Application (v9.0.108+)
- Ideal for businesses and advanced home users seeking seamless networking, security, and wireless in a unified device.
