Dimensions | 141.8 x 127.6 x 30 mm |
Weight | 520 g (1.1 lb) |
Enclosure material | Polycarbonate |
Max. WAN Port Count | 4 |
ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
Power method | USB type C (5V DC/3A) |
Power Supply | USB type C (5V DC/3A) |
Supported Voltage Range | 100—240V AC |
Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
System Memory | 2 GB |
Management | 2 x 2 (DL/UL MU-MIMO) |
Certifications | CE, FCC, IC |
Default WAN Ports | (1) 2.5 GbE RJ45 |
Form Factor | Compact desktop |

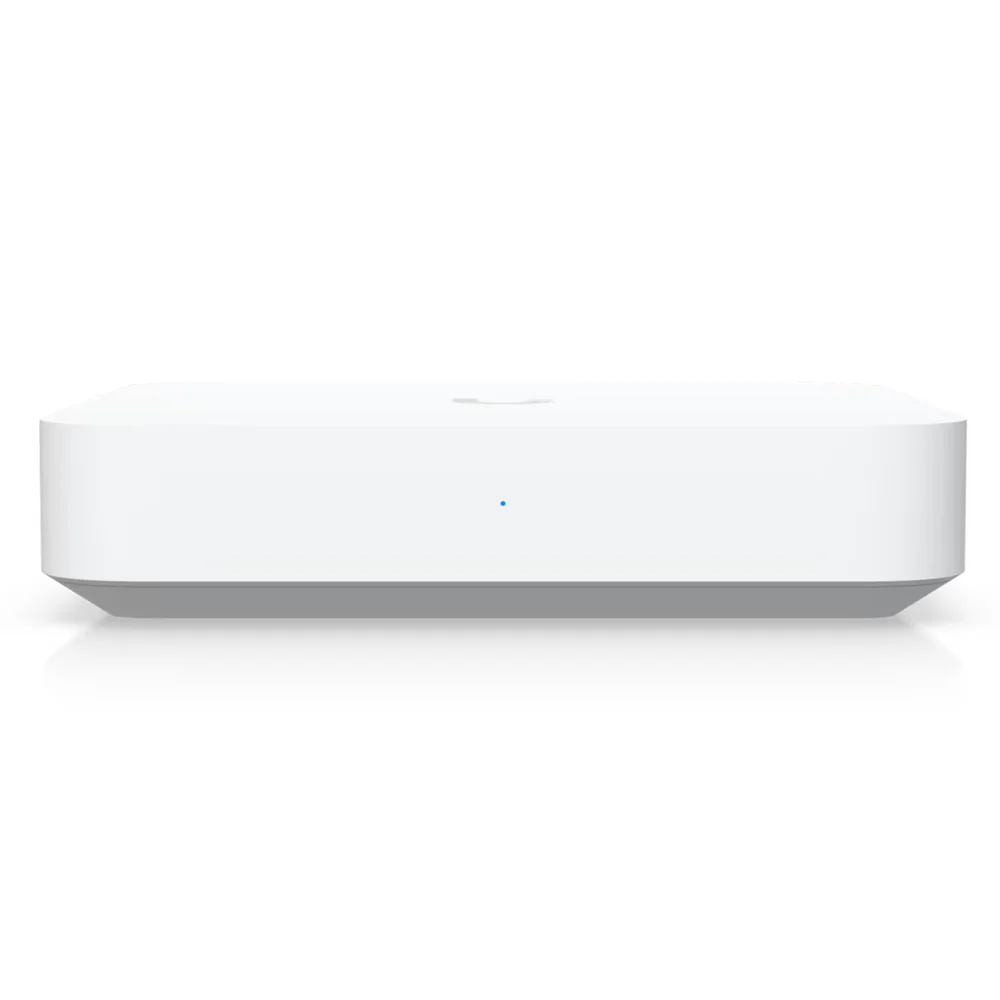

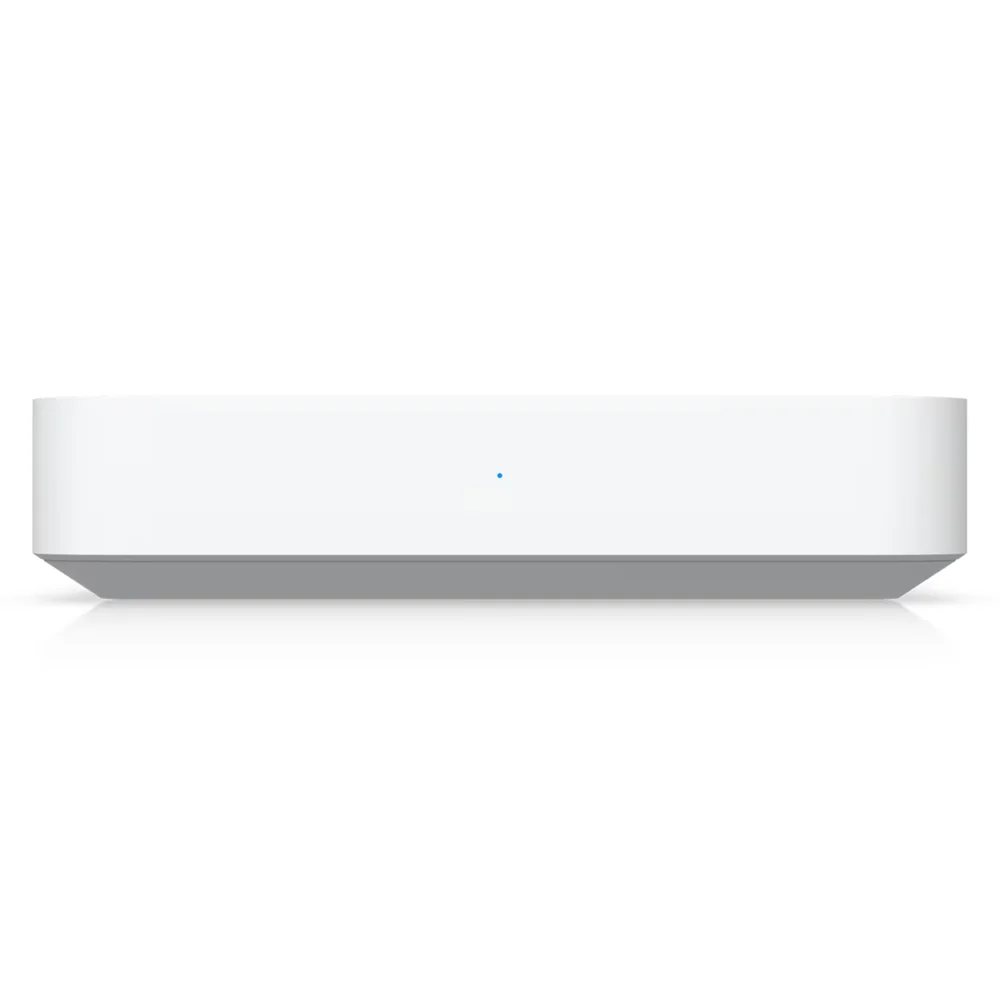

Ubiquiti Gateway Max, Compact, Multi-WAN UniFi Gateway, 2.5 GbE Support Small-To-Medium Sites
$469.00 incl. GST
The UXG-Max, also branded as Gateway Max, is a powerful and compact enterprise-grade security gateway designed for high-performance network environments. Ideal for growing businesses and advanced users, it offers robust security, flexible VPN options, and advanced network management features—all managed through the UniFi Network application.
Ubiquiti UniFi UXG-Max Gateway Max Multi-WAN Wired Router secure, manage and monitor your small-to-medium site’s networked devices with the UniFi Gateway Max from Ubiquiti Networks. With advanced routing and security features, this compact gateway may be placed between your network and the internet through its five 2.5 Gb/s Ethernet ports, which includes one dedicated WAN and a configurable WAN/LAN port to help manage traffic and deter threats. Powered by a 1 GHz Cortex A53 quad core processor with 2GB of memory, the Gateway Max can efficiently support VPN connections while features such as a stateful firewall help to protect your network. One of the LAN ports may be configured to be a WAN port for multiple internet connections. This device may be managed through the UniFi Network platform. The UniFi Gateway Max is compatible with separately purchased CloudKey and Official UniFi Hosting devices in addition to UniFi Network Servers.Networking, Unifi
2 in stock
