Mechanical | |
Dimensions | 192 x 185 x 44 mm (7.6 x 7.3 x 1.7″) |
Weight | 1.2 kg (2.6 lb) |
Enclosure material | Polycarbonate |
Hardware | |
Networking Interface |
(16) GbE RJ45 ports
|
PoE interface | (8) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
Total Non-Blocking Throughput | 16 Gbps |
Switching Capacity | 32 Gbps |
Forwarding Rate | 23.808 Mpps |

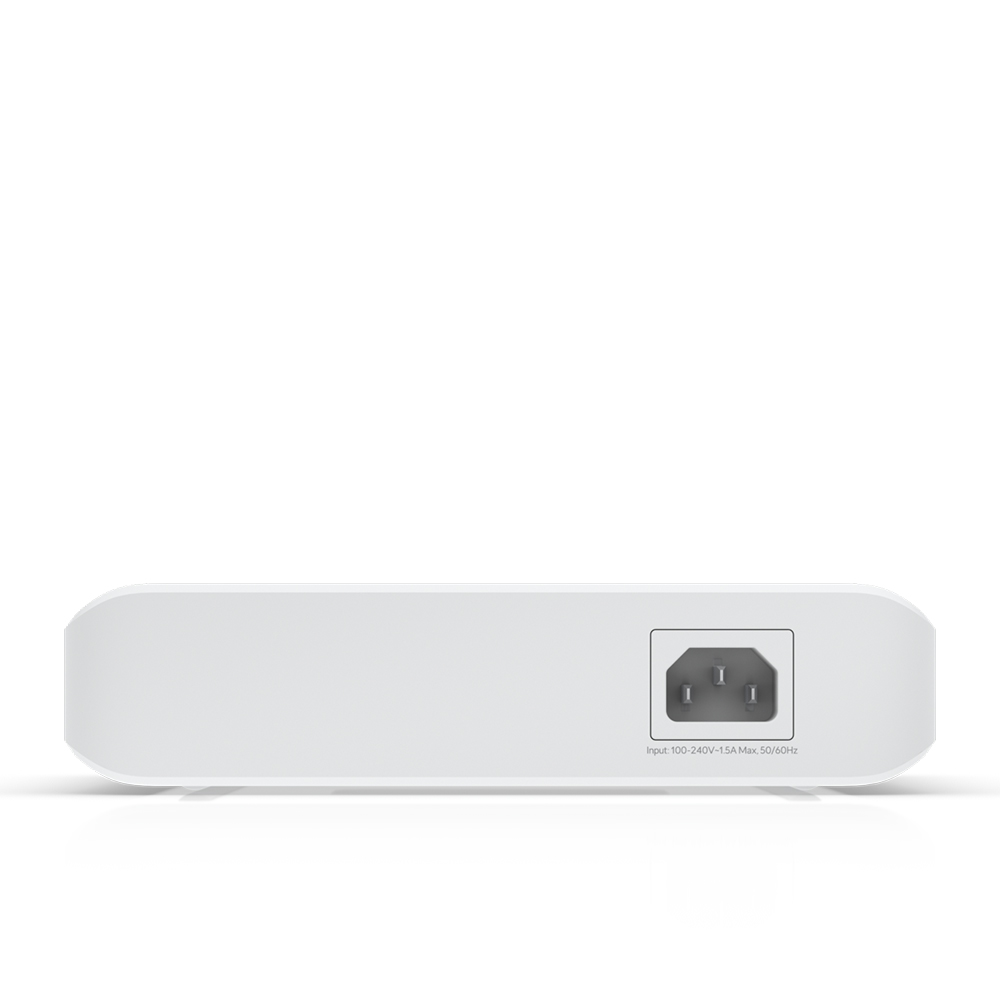

Power Method | Universal input, 100—240V AC |
Power Supply | AC/DC, internal, 60W |
Supported Voltage Range | 100 to 240VAC |
Max. Power Consumption (Excluding PoE Output) | 15W |
LEDs | System Status |
Button | Factory reset |
Ambient operating temperature | -15 to 40° C (5 to 104° F) |
Ambient operating humidity | 10 to 90% noncondensing |
Certifications | CE, FCC, IC |
Ethernet | Speed/link/activity |
PoE | |
Total Available PoE | 45W |
UniFi Network
|
Version 7.2.94 and later
|
Max. PoE Wattage per Port by PSE PoE+ |
PoE+: 30W |
