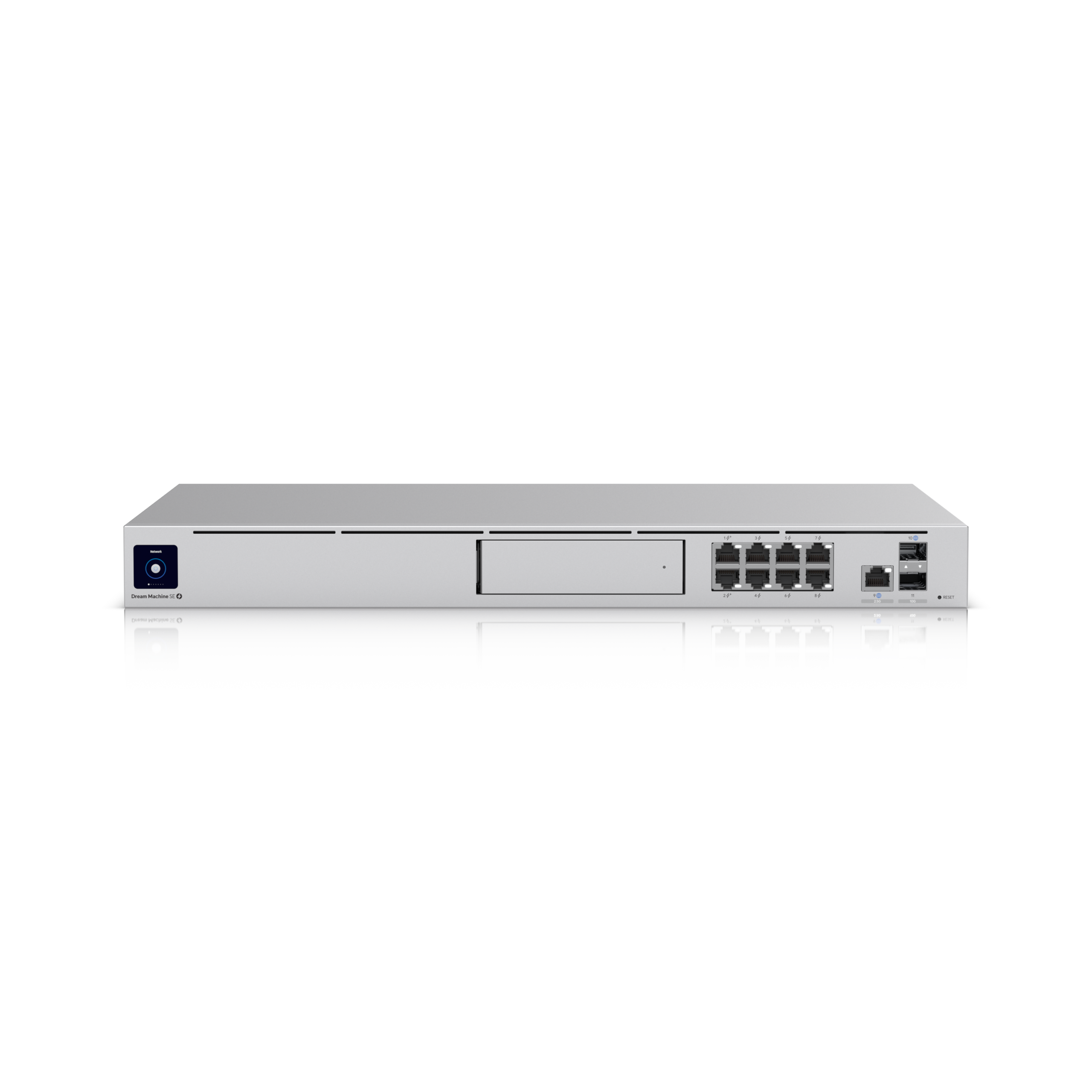

Unifi Dream Machine Special Edition 8x Gbe PoE
$1,299.00 incl. GST
Enterprise-grade, rack-mount UniFi Cloud Gateway with full UniFi application support, 10 Gbps performance, and an integrated PoE switch.
Features:
•Includes full UniFi application suite for device management
•3.5+ Gbps routing
•Integrated 8-port PoE/PoE+ switch
•(1) 10G SFP+, (8) GbE RJ45 LAN ports including (2) PoE+, and (6) PoE
•(1) 10G SFP+, (1) 2.5 GbE RJ45 WAN ports
•1.3″ touchscreen
•128 GB SSD & 3.5″ HDD bay
Recommended, Router, Router, Switch, Switches, Unifi, Unifi, Unifi, Unifi, Network – Switches, Network – Modem/router
Recommended, Router, Router, Switch, Switches, Unifi, Unifi, Unifi, Unifi, Network – Switches, Network – Modem/routerRecommended, Router, Router, Switch, Switches, Unifi, Unifi, Unifi, Unifi, Network – Switches, Network – Modem/router
Recommended, Router, Router, Switch, Switches, Unifi, Unifi, Unifi, Unifi, Network – Switches, Network – Modem/routerRecommended, Router, Router, Switch, Switches, Unifi, Unifi, Unifi, Unifi, Network – Switches, Network – Modem/router
| Mechanical | |
| Dimensions | 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2″) |
| Weight | 4.95 kg (10.9 lb) |
| Enclosure materials | Aluminium CNC, SGCC steel |
| Mount material | SGCC steel |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| System memory | 4 GB DDR4 |
| On-board storage | 16 GB eMMC Integrated 128 GB SSD |
| Management interface | Ethernet Bluetooth |
| Networking interface | (8) LAN: GbE RJ45 ports (1) WAN: 2.5 GbE RJ45 port |
| SFP+ interface | (1) LAN: 10G SFP+ (1) WAN: 10G SFP+ |
| PoE interface | (6) PoE (Pair A 1, 2+; 3, 6-) (2) PoE+ (Pair A 1, 2+; 3, 6-) |
| IDS/IPS throughput | 3.5 Gbps* |
| Power method | (1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz (1) USP-RPS DC input, 52V DC, 3.94A |
| Power supply | AC/DC, internal, 240W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 50W (Excluding PoE output) |
| Max. PoE wattage per port by PSE | PoE: 15.4W PoE+: 30W |
| Voltage range PoE mode | PoE: 44—57V PoE+: 50—57V |
| ESD/EMP protection | Air: ± 15kV, contact: ± 8kV |
| LCM display | ) 1.3″ touchscreen |
| Button | Factory reset |
| Operating temperature | -10 to 40° C (14 to 104° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance | Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking | License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support |
| Brand | Network – Modem/router, Network – Switches, Recommended, Router, Switch, Switches, Unifi |
|---|
