| Brand | UniFi |
| Dimensions | Ø206 × 32.5 mm |
| Weight | 750 g |
| Ports / connectivity | 10 GbE RJ45 port |
| Power method | PoE+ |
| WiFi standard | WiFi 7 (802.11be) |
| Spatial streams | 6 |
| Coverage area | 140 m² |
| Maximum client count | 300+ |
| MIMO | 6 GHz: 2×2, 5 GHz: 2×2, 2.4 GHz: 2×2 (DL/UL MU-MIMO) |
| Max data rate | 6 GHz: 5.8 Gbps, 5 GHz: 4.3 Gbps, 2.4 GHz: 688 Mbps |
| Antenna gain | 6 GHz: 6 dBi; 5 GHz: 5 dBi; 2.4 GHz: 4 dBi |
| Max TX power | 6 GHz: 24 dBm; 5 GHz: 26 dBm; 2.4 GHz: 23 dBm |
| Max BSSIDs | 8 per radio |
| Wireless features | Meshing, band steering, 802.11v/r/k, RRM, PPSK, RadSec, VLAN assignment |
| Captive portal | Custom branding, vouchers, payment-based auth, external portal, password auth |
| Max power consumption | 22 W |
| Supported voltage range | 42.5–57 V DC |
| Enclosure material | UV-stabilised polycarbonate, aluminium alloy |
| Mount material | Stainless steel (SUS304), galvanised steel (SGCC) |
| LED indicators | System: White/Blue |
| Operating frequency | Worldwide: 2400–2483.5, 5150–5850, 5925–7125 MHz |
| Channel bandwidth | HT/VHT/HE/EHT 20–320 MHz |
| Operating temperature | -30 to 40 °C |
| Operating humidity | 5–95% noncondensing |
| NDAA compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 06630-25-08356 |
| Software requirements | UniFi Network 9.0.114+ |

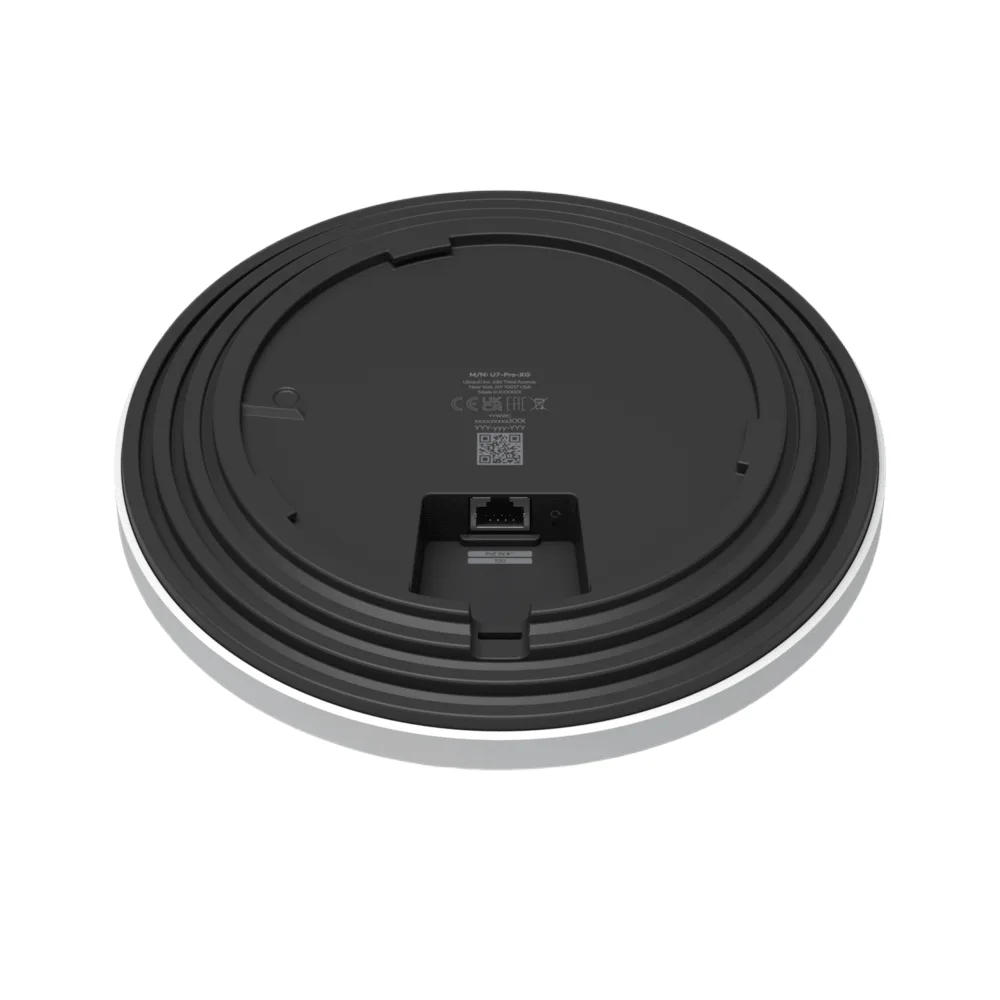

UniFi U7 Pro XG access point
$509.00 incl. GST
The Ubiquiti UniFi U7 Pro XG WiFi 7 access point delivers high-performance wireless connectivity with advanced tri-band operation, 6 GHz support, and a powerful 10 GbE uplink designed for modern high-density environments. With coverage up to 140 m² and support for more than 300 client devices, it is ideal for offices, commercial deployments, and advanced home networks requiring fast, low-latency performance. Featuring WiFi 7 technologies such as MU-MIMO and ultra-wide channel bandwidths up to 320 MHz, the U7 Pro XG ensures reliable throughput and improved efficiency across connected devices.
Built with a sleek, ceiling- or wall-mountable design, this access point combines durability and performance using UV-stabilised polycarbonate and aluminium alloy construction. PoE+ power simplifies installation while maintaining efficient operation. Seamless integration with UniFi Network enables centralised management, advanced analytics, and scalable network control. With support for fast roaming, band steering, PPSK, and secure authentication features, the U7 Pro XG is engineered to deliver stable, high-speed wireless networking across demanding environments consistently.
Key features:
- WiFi 7 technology delivers ultra-fast speeds for high-density environments efficiently.
- Tri-band 2×2 MU-MIMO improves performance across multiple connected devices.
- 10 GbE uplink enables high-throughput networking for modern deployments.
- 140 m² coverage supports reliable wireless performance across large areas.
- Supports 300+ client devices for scalable network environments.
- PoE+ powered design ensures simple and flexible installation.
- Advanced roaming, band steering, and RRM enhance wireless stability.
- UniFi Network integration provides centralised management and analytics.
