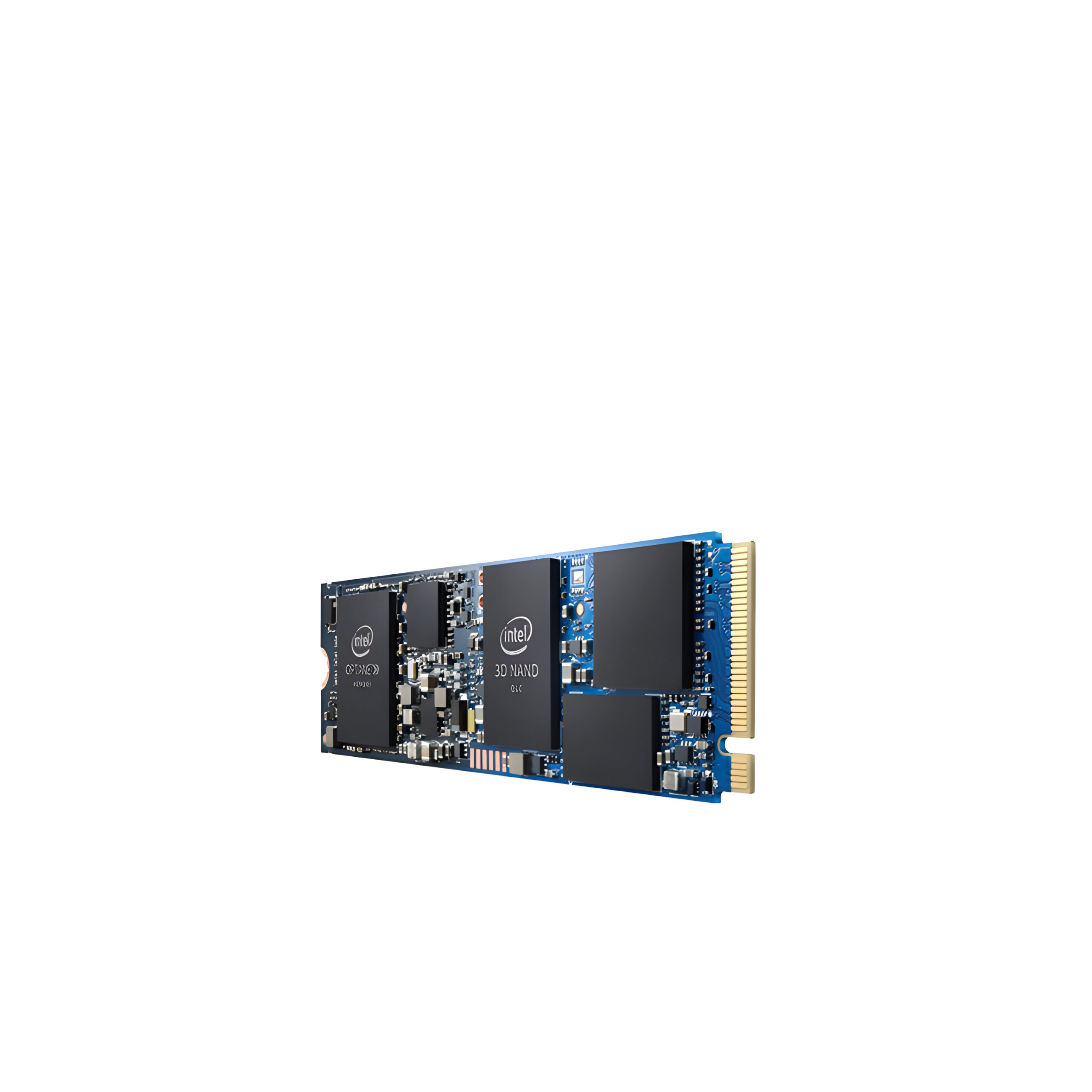

Name: Intel Optane Memory H10 16GB + Intel® QLC 3D NAND SSD 256GB
SKU: HBRPEKNX0101AH
Availability: InStock

Intel Optane Memory H10 16GB + Intel® QLC 3D NAND SSD 256GB

$139.00 incl. GST

Intel Optane Memory H10 with Solid State Storage 16GB + 256GB

The Intel Optane Memory H10 with Solid State Storage 16GB + 256GB is an M.2 card with 32 GB 3d XPoint SLC (Optane) Cache and 512 GB QLC 3D-NAND. It is specified with 1450 MB/s read and 650 MB/s write speeds and 230 / 150k IOPS (read / write). It uses the Intel SLL3D controller for the Optane cache and a Silicon Motion SM2264 controller for the SSD part. The small H10 with 16 GB / 256 GB version is clearly slower than the bigger 32 GB / 512 GB version.Clearance Items, Intel
Clearance Items, Intel, RAMClearance Items, Intel, RAMClearance Items, Intel, RAMClearance Items, Intel, RAMClearance Items, Intel, RAM
Clearance Items, Intel, RAM
Clearance Items, Intel, RAM
Clearance Items, Intel, RAM
Clearance Items, Intel, RAM

Brand	Intel
Capacity	256 GB
Sequential Bandwidth – 100% Read (up to)	1450 MB/s
Sequential Bandwidth – 100% Write (up to)	650 MB/s
Random Read (8GB Span) (up to)	230000 IOPS (4K Blocks)
Random Write (8GB Span) (up to)	150000 IOPS (4K Blocks)
Power – Active	5.3W
Power – Idle	L1.2 : <12mW
Vibration – Operating	2.17 GRMS (5-700 Hz) Max
Vibration – Non-Operating	3.13 GRMS (5-800 Hz) Max
Shock (Operating and Non-Operating)	1000 G / 0.5 ms and 1500 G / 0.5 ms
Operating Temperature Range	0°C to 70°C
Max Operating Temperature	70 °C
Minimum Operating Temperature	0 °C
Endurance Rating (Lifetime Writes)	75TBW
Mean Time Between Failures (MTBF)	1.6 Million Hours
Uncorrectable Bit Error Rate (UBER)	< 1 sector per 10^15 bits read
Weight	Less than 10 grams
Form Factor	M.2 22 x 80mm
Interface	PCIe 3.0 x4, NVMe
Enhanced Power Loss Data Protection	Yes
End-to-End Data Protection	Yes
Intel® Rapid Start Technology	Yes

Brand	Clearance Items, Intel, RAM

Intel Optane Memory H10 16GB + Intel® QLC 3D NAND SSD 256GB
